3m Everlite Enduro Roof Panels (4 Pack)

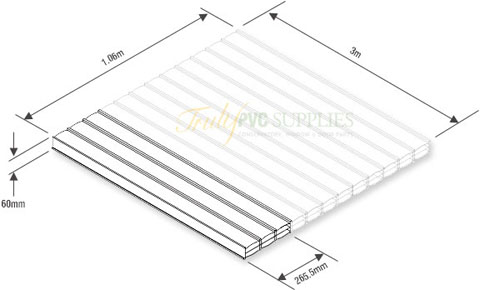

Panel Size: 3m x 265.5mm. Coverage: 3m x 1.06m.Translucent, lightweight roofing for canopies, conservatories, porches and carports.
Everlite Enduro is a highly versatile product, designed specifically for the challenge of low-pitch roofing.
As Everlite Enduro can be fitted with a pitch as low as 2.5° and is able to span 4m without support, it is often chosen for bungalow-fitted low-pitch conservatories and car ports.
Each pack includes
- PVC-u panels x4
- Ultrasteel Locking Bars x4
- Plastic End Caps x24
- Screws/Washers x16
- Foam Profile Fillers x4
- Installation Guide
Working with an existing roof? No problem, panels can be cut to size. Length can be cut down using a fine-toothed handsaw and the Ultrasteel Locking Bars cut using a good quality hacksaw. Width can also be reduced but done along the rib upstand to ensure integrity.
Features & Benefits
- Highly attractive - translucent Ice Blue appearance
- Prevents excessive glare - diffuses natural light
- Sun protection - virtually no UV light transmitted
- Long-life performance - hardwearing and durable
- Excellent thermal insulation - better than standard double-glazed units
- Superior strength - walk on with crawl boards for maintenance and cleaning
- Maximises space and view - span 4m unsupported, longer require purlins
- Easy installation - quick to fit, instructions supplied
- Performance guaranteed - 10 year manufacturer's guarantee
- British Standard - tested to BS476: Part 3:1958
Technical Information
| Material |
PVC-u |
| Design |
3-layer, 2 chamber |
| UV protection |
Co-extruded invisible UV layer |
| Dimensions |
Length: 2m, Width: 265.5mm, Thickness: 60mm |
| Drip nose |
50mm |
| Thermal value |
1.85 (Wm2K) |
| Free span |
4m |
| Pitch |
2.5 degrees (using width pack), 5+ degrees (without width pack) |
Use Everlite Enduro on old Plastmo roofs
Everlite roofing material was a product of Plastmo. Eurocell bought the product and now sell a variant of it under the name Everlite Enduro. Although the Enduro version, which looks identical, is not immediately compatible with existing Plastmo installations, it can be made so.
Enduro panels can be simply turned round, so that the top becomes the bottom and the bottom becomes the top. This allows the ribs that run up the side of Enduro panels to fit with the original Plastmo panels. Each panel has a pre-cut Drip Nose, which is used on the Eaves end. When reversing panels to fit Plastmo it is necessary to trim the existing Drip Nose from the Enduro panels and cut-out a new drip in the opposite end. This should be taken into account when choosing panel length.
