Stylish Lever/Lever Set from HOPPE
(Four favourite finishes and supplied with fixings)Operational guaranteed for 10 years!

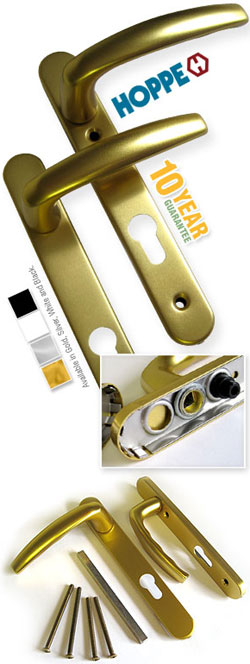

This pair of Atlanta internal and external levers and are fully reversible, so can fit either left or right hung doors of 56 to 70mm thickness.

The Atlanta series feature cast aluminium levers with pressed steel backplates and stainless steel under-construction designed and to suit multipoint locks with 92mm cylinder centres.

These levers are un-sprung, so they take advantage of the spring inside the door lock to return handle to position when not in use. Find out below if you need sprung or unsprung levers. Also, refer to the key measurements to check handle fits your door.

Features & Benefits

• Sleek and comfortable lever
• Fully reversible for left or right-hand use
• Un-sprung levers use door lock spring
• Common 92mm PZ centres
• Fits 56-70mm thick doors
• Fixing lugs provide more secure fit
• Strong, hardwearing backplate
• Spindle and fixing screws supplied
• 10 year operational guarantee

These handles bear the hallmarks of quality that we expect from HOPPE, including levers that are fixed to the backplates, both of which are fitted with fixing lugs to provide a more secure fit.

Choose a Finish

Be sure that it fits

Not all handles fit all multi-point mechanisms. Before ordering check distance from centre of spindle to centre of cylinder barrel (see A), Distance between fixing screws (see F) and Spindle width (see E).

• Centre of spindle to centre of cylinder barrel = 92mm (92 PZ)
• Distance between fixing screws = 122mm
• Distance between handle centre and top fixing screw = 21mm
• Spindle width = 8mm

Description		Measurement
	Centres (Spindle to Cylinder)	92mm (92PZ)
	Back Plate Height	220mm
	Back Plate Width	30mm
	Back Plate Depth	10mm
	Spindle Width	8mm
	Fixings Space	122mm
	Top Fixing Offset	21mm

Need a sprung or un-sprung handle?

Some handles incorporate a spring, which returns the handle to its normal horizontal position when not in use. Others, like this HOPPE Atlanta, are un-sprung and rely on a spring within the door lock mechanism.

You can check whether you need a sprung or un-sprung lever by removing the existing handle and operating it. If the handle returned to position when fitted to the door but does not return to position when detached then you require an un-sprung handle like this.

Do you need a new euro cylinder lock?

If you're replacing handles that have a different Back Plate Depth then it may be advisable to replace the cylinder lock also. Cylinders may project outside of the Back Plate but by no more than 5mm (see below). We supply a range of quality euro cylinders at highly competitive prices.
