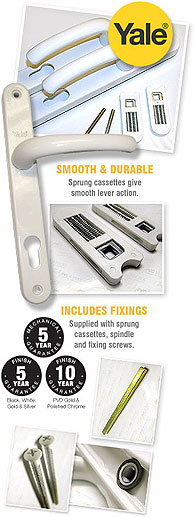

High Quality, Stylish Handles from Yale
(White powder coated. Supplied with fixings.)5 Year Finish & Mechanism Guarantee!

Don't settle for second best. This pair of stylish and contemporary handles are ideal replacement door handles and suitable for all door types, including uPVC and composite.

Manufactured by Yale, a long-standing, trusted and leading name in home security and door hardware, these handles have been tested in accordance to BS EN 1906:2002 and BS EN 1670:2007.

Important Measurements (see diagram below)

• Centre of spindle to centre of cylinder barrel = 92mm (92 PZ)
• Spindle width = 8mm
• Distance between fixing screws = 215mm

Features & Benefits

• Stylish and erganomic design
• Sprung lever action is smooth and durable
• Mechanism guaranteed for 5 years
• 5 year Finish guarantee
• Supplied with fixing screws (2 x M5 80mm)
• Supplied with spindle (1 x 8mm x 140mm)
• Includes cassette springs (x2)
• Tested in accordance to BS EN 1906:2002 and BS EN 1670:2007

Ordering the correct size

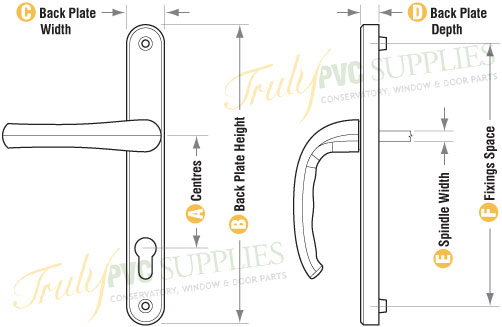

Not all handles fit all multi-point locking mechanisms, so be sure to buy the correct one. Key measurements include the distance between the centre of the spindle and centre of the cylinder barrel (see A in diagram), the distance between the fixing screws (see F in diagram) and the width of the spindle (see E in diagram).

Description		Measurement
	Centres (Spindle to Cylinder)	92mm (92PZ)
	Back Plate Height	254mm
	Back Plate Width	30mm
	Back Plate Depth	14mm
	Spindle Width	8mm
	Fixings Space	215mm

Do you need a new euro cylinder lock?

If you're replacing handles that have a different Back Plate Depth (14mm) then it may be advisable to replace the cylinder lock also. Cylinders should project outside of the Back Plate but by no more than 5mm (see below). We supply a range of quality euro cylinders at highly competitive prices.
